The 4L60E transmission is designed to handle a max engine torque of 360 lb-ft. The 4L60E naming also indicates a lot about the transmission. The 4 indicates that this is a 4 speed transmission, with it being an automatic transmission in this case. The L indicates that the engine is longitudinally positioned. The name 4L60 stands for 4-speeds, longitudinally placed, and 6000 pounds gross vehicle weight. By 1998 the 4L60-E was released broadly by GM in both 2 and 4 wheel drive vehicles. In 1993 the biggest change occurred, and the 4L60 changed to the 4L60-E. The hydraulic shifting system was changed over to an electronic system. REBUILT Transmission 4L60-E 4-Speed GMC Yukon Chevy Silverado Trucks K1500 4x4. 3YR WARRANTY,FREE CONVERTER,NO CORE CHARGE, FAST SHIP.

ManufacturerGeneral Motors
Body and chassis
Class4-speed longitudinalautomatic transmission
PredecessorTurbo-Hydramatic 700R4

The 4L60E (and similar 4L65E) is a series of automatic transmissions from General Motors. Designed for longitudinal engine configurations, the series includes 4 forward gears and 1 reverse gear. The 4L60E is the electronically commanded evolution of the Turbo-Hydramatic 700R4, originally produced in 1982.

The 4L60E and 4L65E are built at Toledo Transmission in Toledo, Ohio and have also been built at Romulus Transmission in Romulus, Michigan and Ramos Arizpe, Mexico.


The two transmissions cannot be differentiated from the outside. The 4L65E shares the same exterior parts but have stronger internals such as 5 pinion planets compared to 4 in the 4L60E. 4L60E uses a 6.5' depth bell with 6 bolts for non gen 3 LS applications and a 7' depth bell with 7 bolts for LS applications. The 4L65E/70E uses a 7' depth bell and 7 bolts.

They also have different input shafts and torque converters. 4L60E's uses a 298mm input shaft for non LS and a 300mm input shaft for LS applications. 4L65E/4L70E uses a 300mm input shaft and converter designed for LS applications only.

Gear ratios:




The TH700R4 was renamed '4L60' (RPO MD8) following the new General Motors naming convention when the electronic version, 4L60E (RPO M30), was phased in as the 4L60 was being phased out. This happened in 1993 for trucks, vans, and SUVs, and 1994 for rear wheel drive passenger cars. In 1996, a bolt-on bell housing was phased in (along with a six-bolt tailhousing) for S-10 Trucks and S-10 Blazers and beginning in 1998 for all other applications. Beginning in 1998 a new 300mm torque converter with improved higher-capacity internals, 300mm style input shaft, and 300mm style pump was also introduced on models coupled to a Gen III Small Block. The 4L60E is rated to handle up to 360 ft⋅lb (490 N⋅m) of torque. It weighs 133 pounds without transmission fluid.[1]


The 4L60E family of transmissions use 2 shift solenoids, initially called Shift Solenoid A & Shift Solenoid B, later changed to comply with OBD II (On Board Diagnostics revision 2) regulations to 1-2 Shift Solenoid & 2-3 Shift solenoid. By activating and deactivating the solenoids in a predetermined pattern by the PCM, 4 distinct gear ratios can be achieved. The last 4L60Es were only used in the GM Vans in 2013, before being replaced by the 6L80E. The shift solenoid pattern, also sometimes referred to as solenoid firing order, is as follows;

Shift Solenoid Pattern
1-2 Solenoid2-3 Solenoid
1st GearOnOn
2nd GearOffOn
3rd GearOffOff
4th GearOnOff

4l60e Transmission

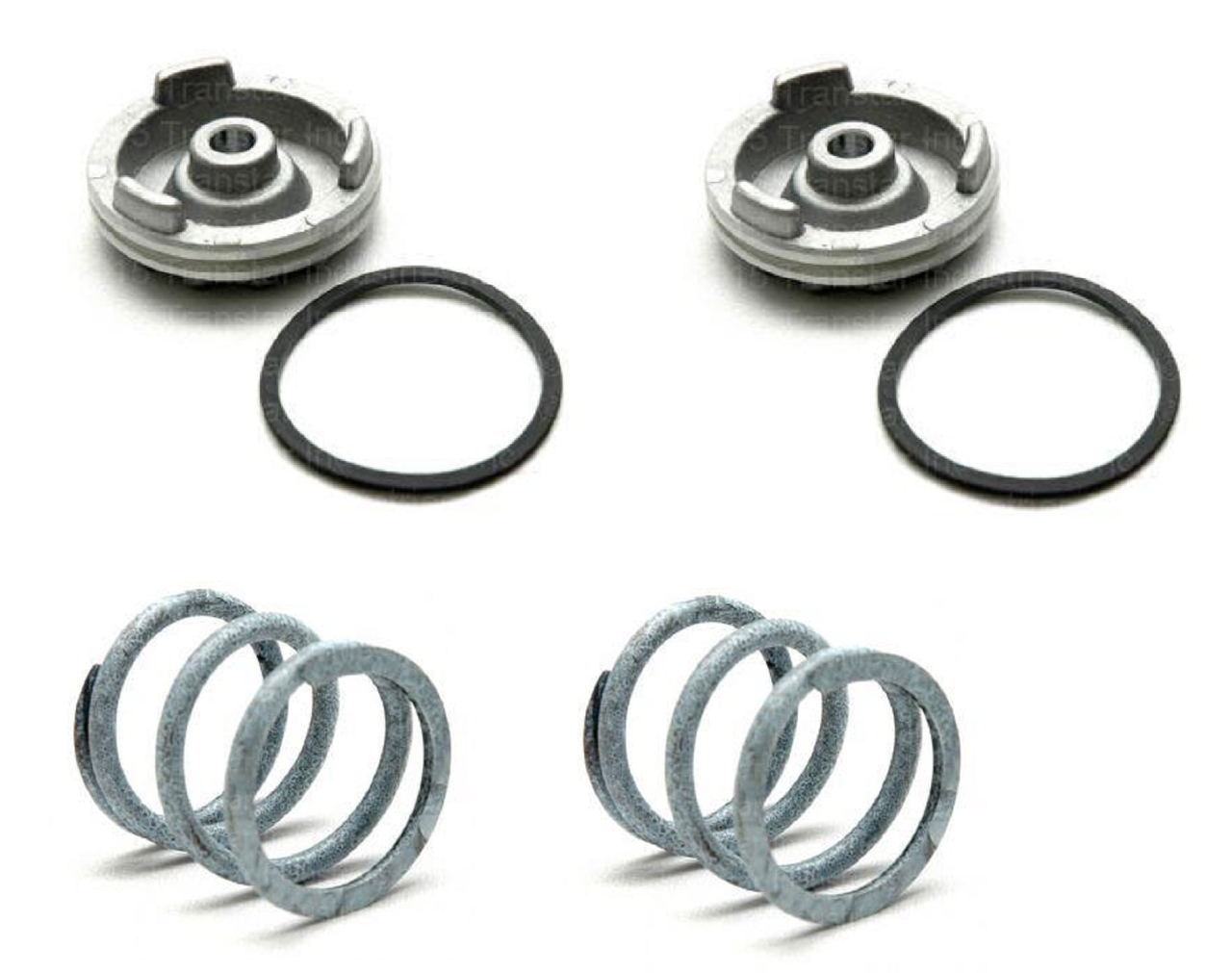

4l60e transmission rebuild kit
  • Buick Rainier, 2004-2007
  • Buick Roadmaster, 1994–1996
  • Cadillac Escalade, 1999-2000, 2002-2005 (models with LM7/5.3L V8 Also with 6.0 LQ9)
  • Cadillac Fleetwood, 1994–1996
  • Chevrolet Astro, 1993-2005
  • Chevrolet Avalanche, 2002-2008
  • Chevrolet S-10 Blazer, 1994-2005
  • Chevrolet Camaro, 1994–2001
  • Chevrolet Caprice, 1994-1996
  • Chevrolet C/K, 1993-2000
  • Chevrolet Colorado, 2004-2012
  • Chevrolet Corvette, 1994–2004
  • Chevrolet Express, 2003-2012
  • Chevrolet Impala SS, 1994–1996
  • Chevrolet S-10, 1994-2005
  • Chevrolet Silverado 1500-2500 (2500 with 6 bolt axle pattern)
  • Chevrolet SSR, 2003-2006
  • Chevrolet Suburban, 1500, 1993-2009
  • Chevrolet TrailBlazer, 2002-2009
  • GMC Canyon, 2004-2012
  • GMC Envoy, 2003-2009
  • GMC Jimmy, 1993-2005
  • GMC Safari, 1993-2005
  • GMC Savana, 2003-2013
  • GMC Sierra, 1500-2500 (2500 with 6 bolt axle pattern)
  • GMC Sonoma, 1994-2005
  • GMC Yukon XL Denali
  • GMC Vandura, 1993-1996
  • Holden Commodore (VR, VS, VT, VX, VY, VZ, VE), 1993–2012
  • Holden Monaro, 2001-2006
  • Holden Caprice (VR, VS, WH, WK, WL and WM), 1994–2008
  • Pontiac Firebird, 1994–2002
  • Pontiac GTO, 2004 only
  • Saab 9-7X, 2005-2009
  • Isuzu Ascender, 2003-2008


An updated 4L60E, the 4L65E (RPO M32), was phased in the 2001 model year when coupled behind the 6.0 Vortec. Five-pinion front and rear planetaries, along with an additional 3/4 clutch allowing 7 clutches in the input housing and induction hardened input shaft assembly, were improved to withstand up to 380 ft⋅lb (520 N⋅m) of torque.

4l60e M30 Option


  • Cadillac Escalade EXT
  • Chevrolet Corvette, 2005 only
  • Holden Commodore, VZ 6.0 only
  • Holden Crewman, 2004 only
  • Holden One Tonner, 2004 only
  • HSV Clubsport VZ
  • Pontiac GTO, 2005–2006 (M32, 3.46:1 final drive)
